Architectural Hardware · ISO 9001 Certified
Premium Architectural
Stainless Steel Hardware
Specialist in high-precision investment casting for modern architecture. Delivering mirror-polished (Ra < 0.2) glass clamps, spigots, and handrail components in SS304 and SS316 for safety and elegance.
Products
Glass & Balustrade Hardware Range
Every component is investment-cast from SS304 or SS316, hand-polished to Ra < 0.2μm, and shipped with a 3.1 Mill Test Certificate.

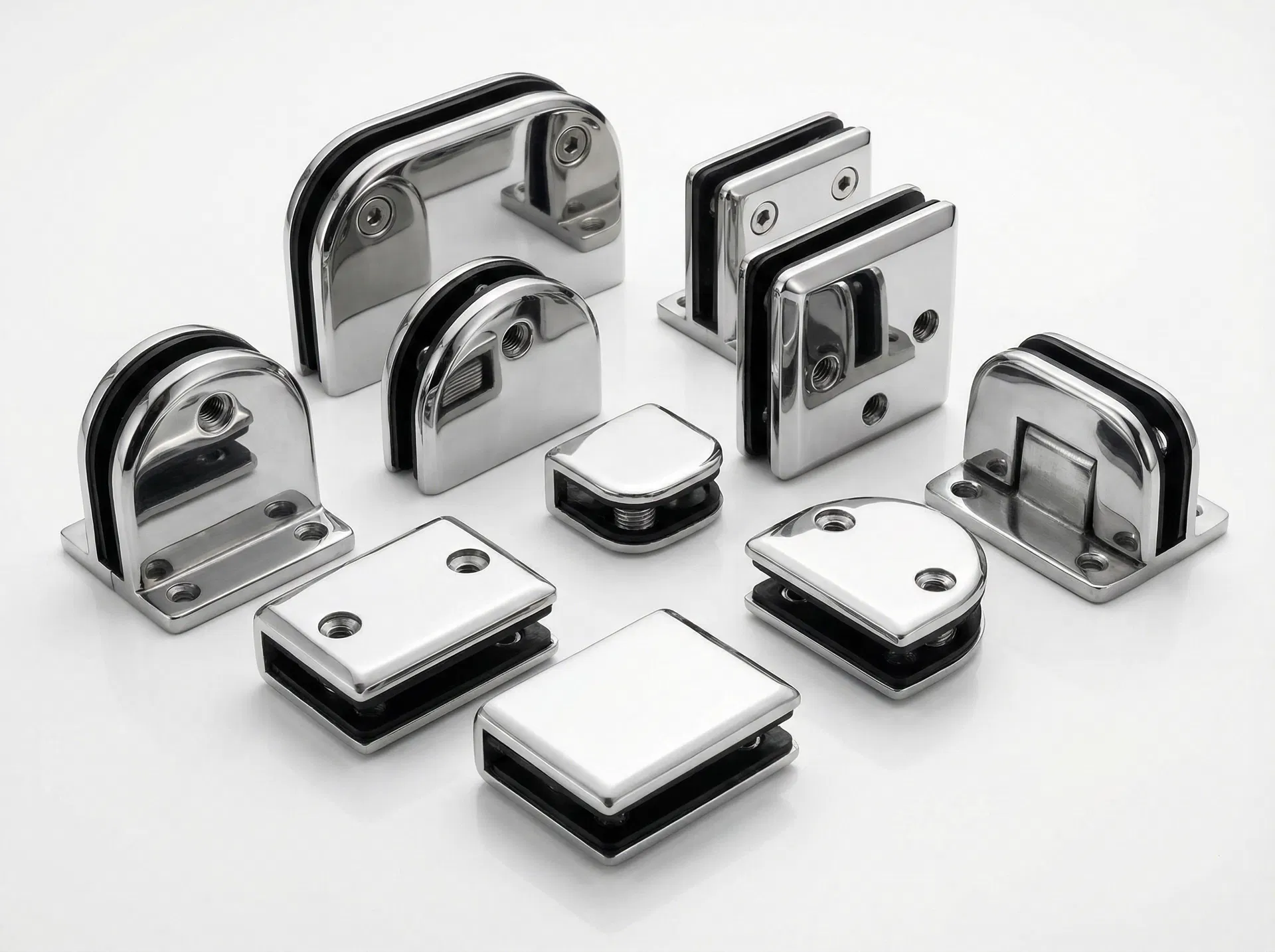

Glass Clamps
D-Clamps & Square Clamps
Finish: Mirror Ra < 0.2 / Satin
Wall-mount, floor-mount, and corner variants. Custom dimensions available.

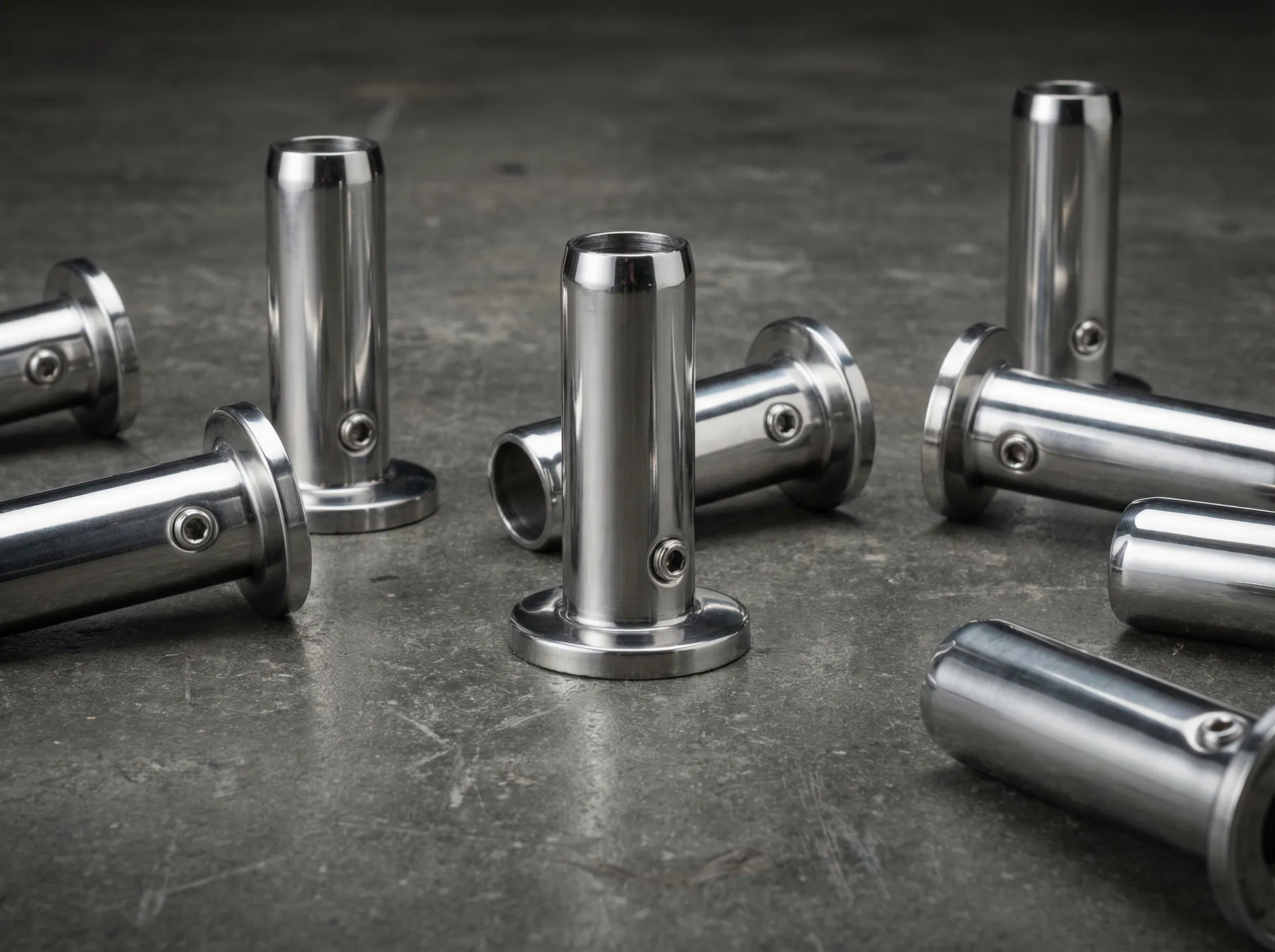

Pool Fencing Spigots
Core Drilled & Surface Mount
Finish: Mirror / Satin
Designed for frameless glass pool fencing. Coastal-grade 316L for saltwater environments.

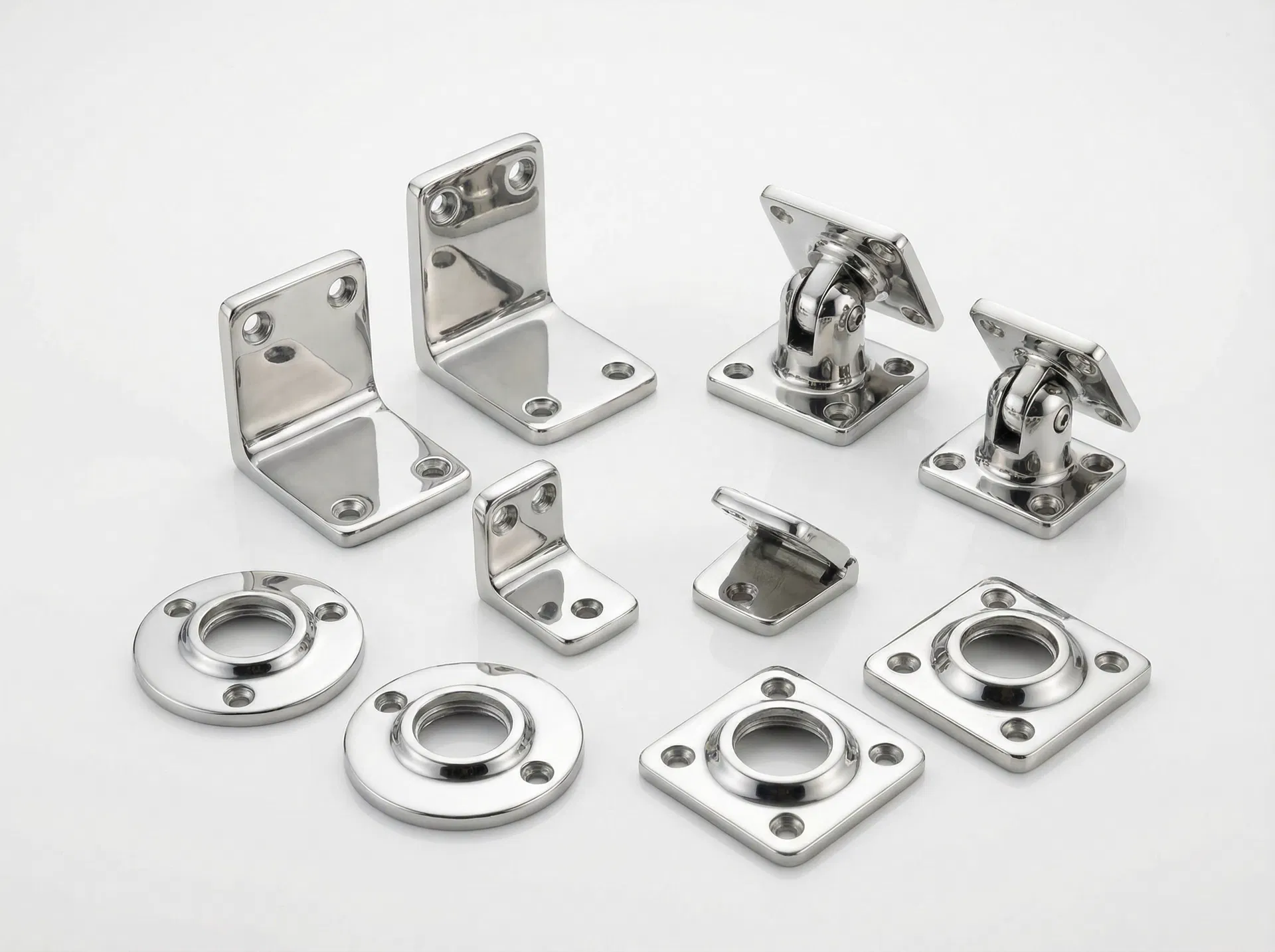

Handrail Brackets & Flanges
Wall Brackets & Post Flanges
Finish: Mirror / Satin / Brushed
Fixed and adjustable angles. Round and square base flanges. Custom OEM profiles.

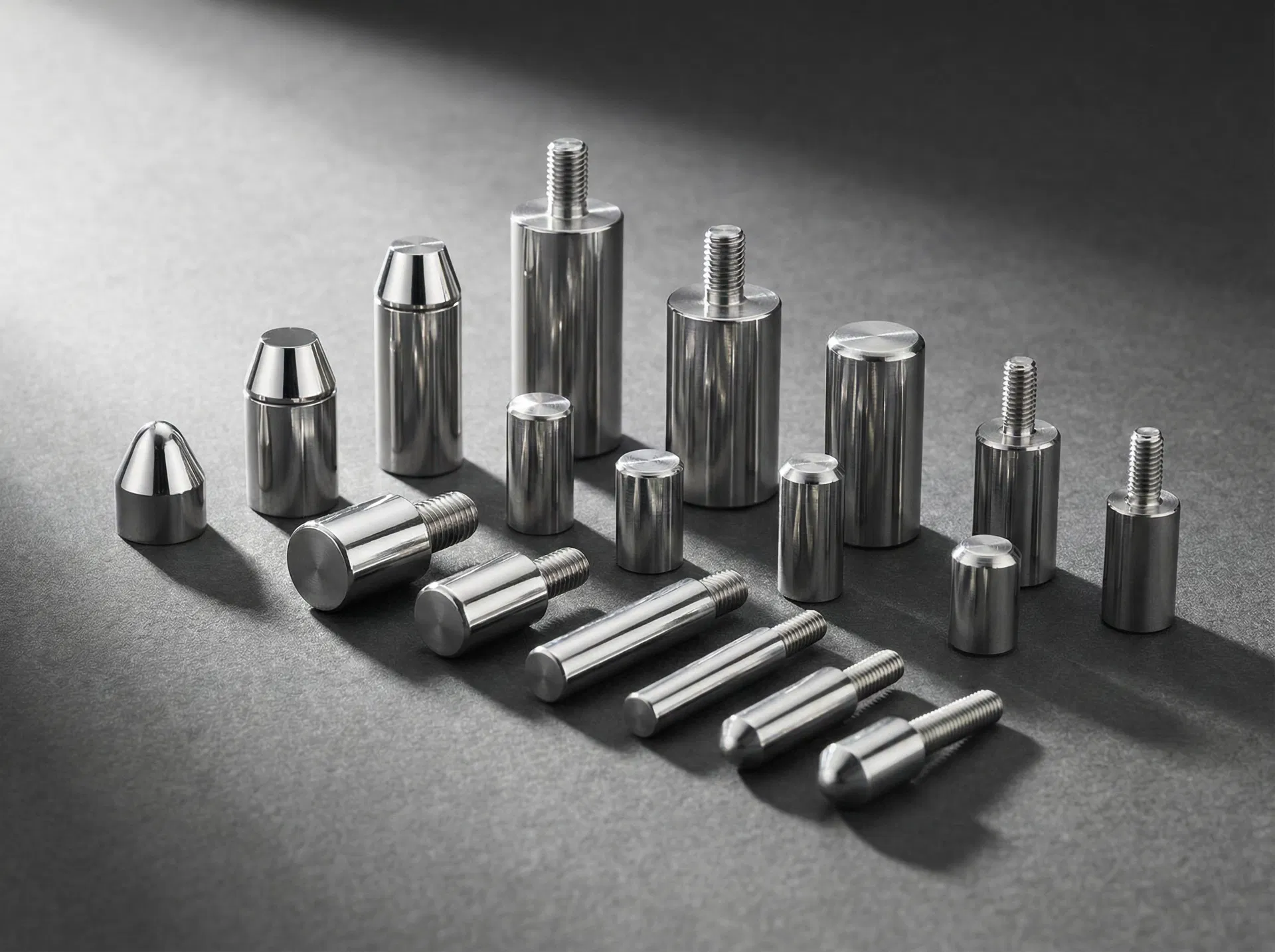

Standoff Pins & Point Fixings
Glass Facade & Signage Fixings
Finish: Mirror / Satin
Barrel, dome, and flat-head caps. M6–M12 threaded stems. Custom lengths.

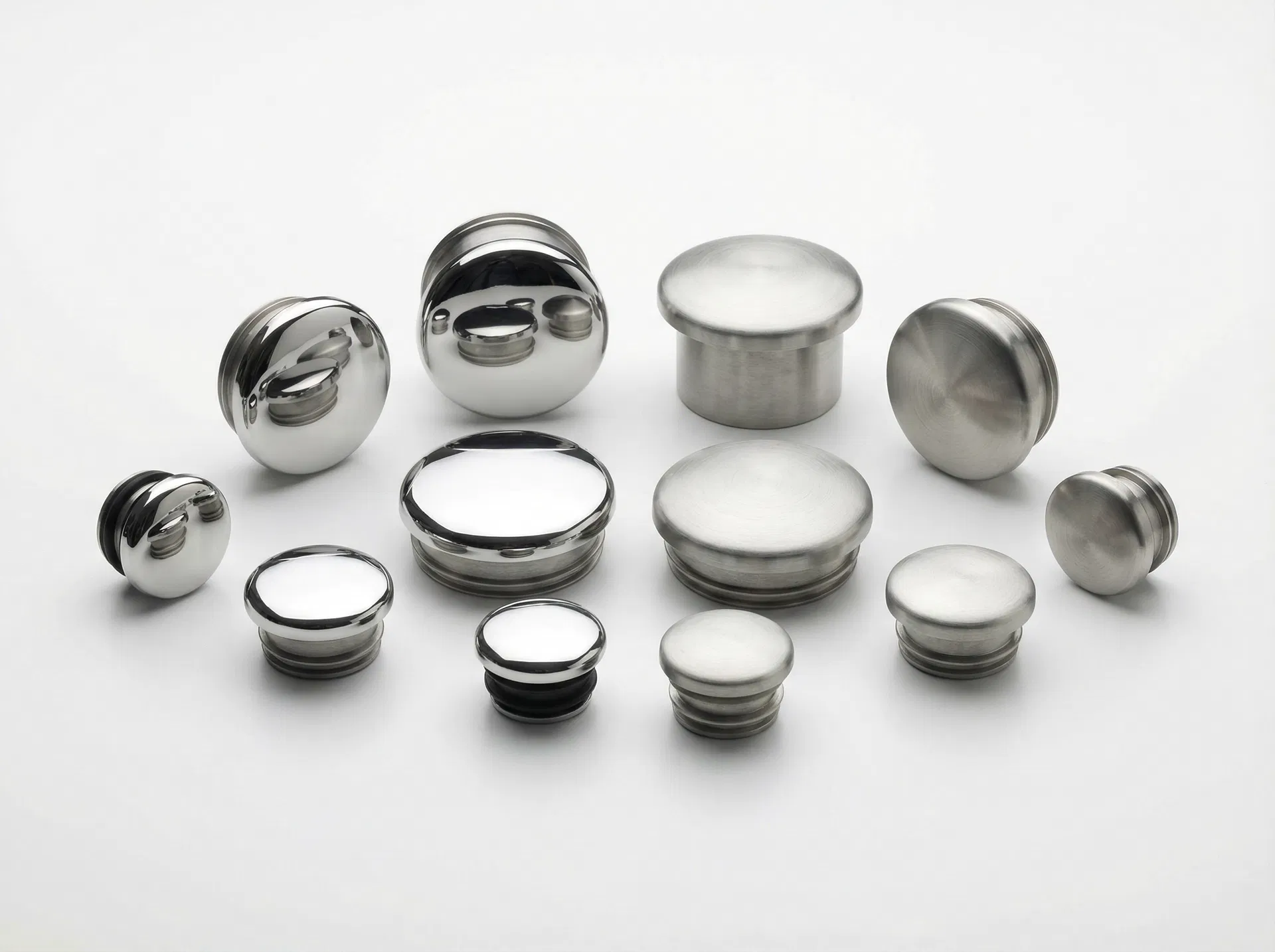

End Caps & Post Plugs
Tube Caps & Handrail Plugs
Finish: Mirror / Satin
Round and square profiles. Multiple diameter options. Tight-fit investment casting.
Technical Depth
Technical Manufacturing Capabilities
From wax pattern to finished, packaged component — all under one roof in Xinyi, Jiangsu, China.
Investment Casting Process
- ✓Silica Sol (Lost Wax) for complex geometries
- ✓Ra 3.2 as-cast; Ra < 0.2 after mirror polishing
- ✓Zero-porosity internal structures
- ✓CT4–CT6 dimensional tolerance (ISO 8062)
Material Selection
- ✓SS304 — cost-effective for indoor applications
- ✓SS316 / 316L — Mo-enhanced for coastal & outdoor
- ✓Duplex 2205 — extreme corrosion resistance
- ✓Custom alloys available on request
Surface Finish Options
- ✓Hand mirror polishing — Ra < 0.2μm
- ✓Satin / brushed finish — No. 4 or HL
- ✓Electropolishing for maximum corrosion resistance
- ✓Powder coating and PVD coating available
Safety & Compliance
- ✓Engineered for high-load capacity in public spaces
- ✓100% dimensional inspection (CMM)
- ✓EN 10204 3.1 Mill Test Certificate per batch
- ✓Salt spray testing (ASTM B117) available
Technical Data
Casting & Finishing Specifications
| Process | Silica Sol Investment Casting + CNC Machining |
| Materials | SS304, SS316, SS316L, Duplex 2205 |
| Casting Tolerance | CT4–CT6 (ISO 8062) |
| CNC Tolerance | ±0.01mm on critical dimensions |
| Surface Finish | Mirror Ra < 0.2 / Satin / Electropolished |
| Weight Range | 50g – 15kg per component |
| MOQ | 50 pcs (prototype); 500+ pcs (production) |
| Lead Time | Prototype: 15–20 days | Production: 30–45 days |
| Certification | ISO 9001:2015 | EN 10204 3.1 MTC |
